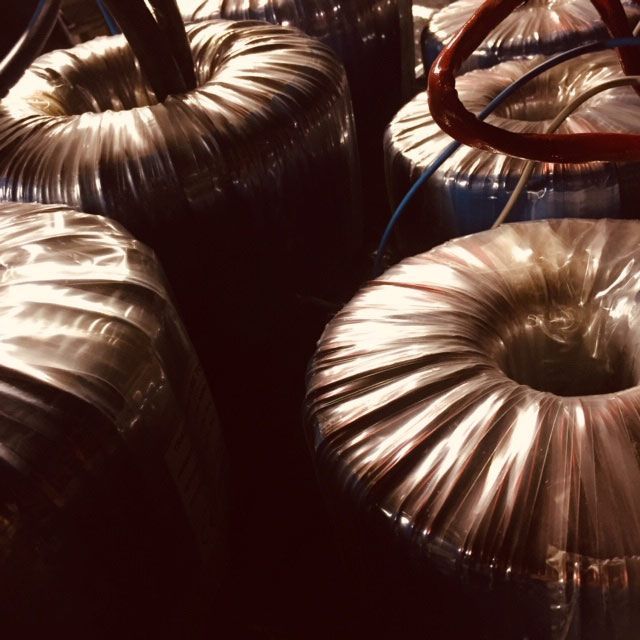

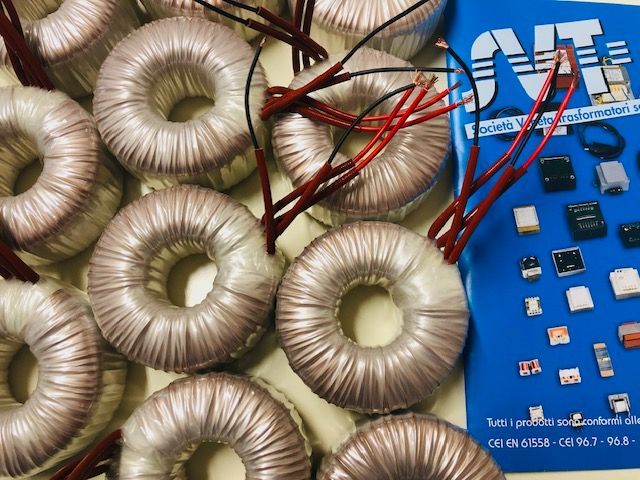

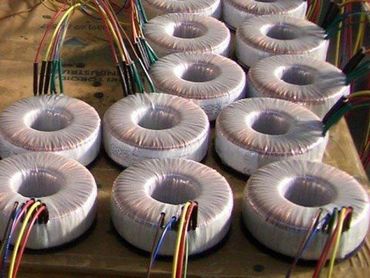

Industrial toroid transformers
Toroidal transformers have the advantage over lamellar transformers, whether single-phase or three-phase, of guaranteeing high efficiency with considerably reduced dimensions and weight. They are used in all those electrical devices that require small dimensions and high performance (e.g. audio and/or medical transformers). Toroidal transformers must transfer full power to the load, without introducing limitations that would necessarily lead to a decrease in the performance of the finished product on which these transformers are installed.
S.V.T. toroidal transformers guarantee optimum performance and the widest flexibility in terms of dimensions as the magnetic cores are sheared to the end customer's specific requirements.
Both single-phase and three-phase transformers are manufactured, and the toroids are supplied complete with a fastening kit consisting of
consisting of one iron and two rubber discs, a kit necessary for mounting the toroidal transformer itself.
S.V.T. toroidal transformers can be supplied complete with customised accessories and wiring
based on the end customer's specific requirements.
Transformers for every need
S.V.T. toroidal transformers are designed and manufactured with top quality materials, electrolytic copper wire and aluminium conductors, insulators with high dielectric and thermal properties (class F and H), impregnation with paint or epoxy resins, and are extremely robust and safe for any installation requirement.
S.V.T. toroidal transformers can also be supplied complete with epoxy resin in the central hole, on which suitable inserts and/or supports are applied for fixing the transformers themselves, or the transformers can be placed inside a plastic box, which guarantees the transformers themselves a higher IP protection rating for applications requiring it.
A protection shield can also be applied between the primary and secondary windings to guarantee a higher degree of insulation. On request, a thermal overheating protection can also be applied to the primary winding, which can be either automatic or manual reset, depending on the application required. The quality of
S.V.T.
toroidal transformers is verified on several levels: each stage of manufacturing is checked, from the initial winding to the final testing of the transformer itself.
Tried and tested products
Every transformer is 100% tested after production. In this way, the electromagnetic performance and guaranteed safety level is certified for each transformer produced. Pre-testing as well as final testing is performed in accordance with the applicable CEI EN 61558 - CEI 96.7 - 96.8 - CE standards, depending on the type of transformer and its use. The careful control of production processes and customised testing with dedicated and specially designed equipment guarantees S.V.T. electrical transformers maximum reliability. It should also be noted that S.V.T. toroidal transformers are manufactured with automatic machines in order to guarantee maximum reliability and repeatability in electrical tolerance parameters. S.V.T. designs and develops different types of toroidal transformers designed and customised according to the end customer's needs, maximising performance and preventing any type of problem.
S.V.T. toroidal transformers can also be manufactured with extra-flat lamellar cores that further reduce the weight and size of the transformers with the same power output.
S.V.T. toroidal transformers cover a wide range of applications with dimensional and technical characteristics ranging from standard to the most complex customisations.
S.V.T.
supports its customers from the design and customisation of toroidal electrical transformers, so as to be able to guarantee the maximum result in terms of economics and technical performance.
S.V.T.
electrical transformers are used in a variety of sectors such as the panel building sector, home automation, and more generally in all those applications where a variation in voltage with respect to that with which the transformer itself is supplied is required. Precise and binding tests ensure a high degree of safety and reliability of every single transformer produced, in compliance with current national and international regulations
For information on our products, call us on +39 049 9070026 or write to us
